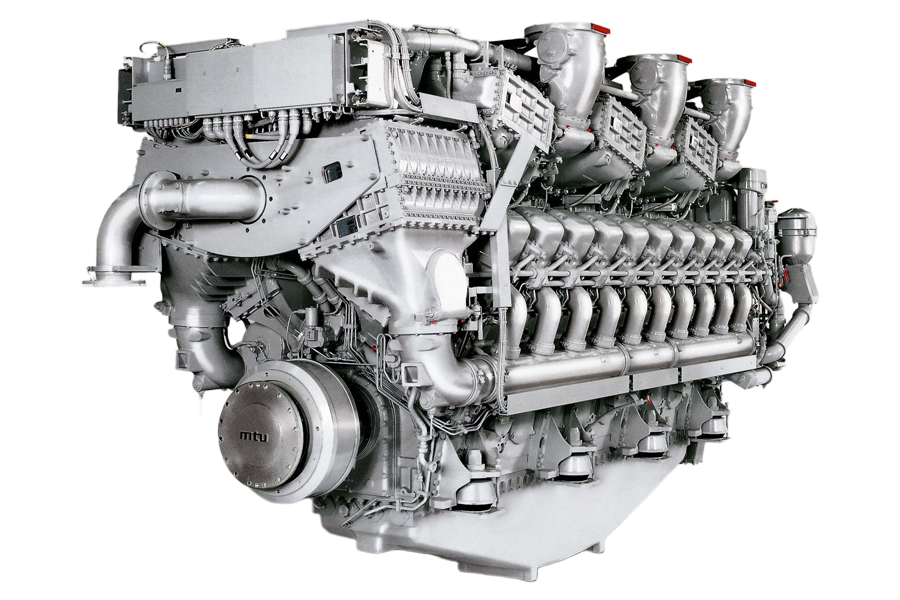

mtu Series 1163 Engines
Lighter and more powerful than any comparable engine, the high-speed large-bore diesels of the 1163 series have been a success story for almost 30 years.Developed for use in marine and commercial vessels they reliably and powerfully propel ships all over the world. Optimum acceleration capability, high power density and reliability are all crucial characteristics that are so important for marine applications.
mtu 1163 series diesel engine models & specifications
| Models | Rated Power (kW) | Rated Power (bhp) | rpm |
|---|---|---|---|
| 16V 1163 M74 | 4800 | 6437 | 1250 |
| 16V 1163 M84 | 5200 | 6973 | 1280 |
| 16V 1163 M94 | 5920 | 7939 | 1325 |
| 20V 1163 M74 | 6000 | 8046 | 1250 |
| 20V 1163 M84 | 6500 | 8717 | 1280 |
| 20V 1163 M94 | 7400 | 9923 | 1325 |
| 16V 1163 TB73L | 5200 | 6975 | 1230 |
| 20V 1163 TB73 | 6000 | 8045 | 1200 |
| 16V 1163 TB93 | 5920 | 7940 | 1300 |
| 20V 1163 TB93 | 7400 | 9925 | 1300 |
mtu Series 1163 - The proven & evolved engine
The proven, evolved engine for the marine industry for fast vessels with intermittent load factors. For frigates, corvettes, patrol boats, fast ferries and displacement yachts.
Engineering excellence and technology leadership in product engineering, process engineering and application engineering is our heritage. Our customers and the obligation to our heritage are the recipe for a reliable partnership for decades to come.
Our customized propulsion solutions for large military vessels correspond to strict navy standards and guarantee:
— High reliability and availability
— A broad engine characteristic map and unlimited low load capability
— High power concentration despite low weight
— Excellent maneuverability and acceleration
— Low acoustic, optical, and infrared signatures
— Substantial shock-proofing
— Low fuel consumption over the entire operating range
— Long maintenance intervals
mtu Series 1163 key features at a glance
Starting & oil systems feature a 24V electric starter, gear-driven lube pump, switchable/centrifugal filters, heat exchanger, and closed crankcase ventilation for reliable operation.
Fuel & cooling systems include a common rail injection with cylinder cutout, jacketed fuel lines, and separate high/low-temp circuits with gear-driven pumps for efficient performance.
Exhaust, turbocharging, and monitoring systems offer triple-walled liquid-cooled manifolds, twin turbochargers, seawater-resistant filters, and mtu NautIQ solutions for advanced control.
